Universal machines type UM44 are useful for cutting, mixing, kneading, emulsifying ; only one Stephan machine for several processes. It means one investiment, an optimal using of the machine and a flexible planning of production. Thanks to its different executions and full additionnal equipments, the Stephan machine is perfectly fitting to the needs of all branches.
The Stephan Universal Machines are easy handling. They are the result of a long experience and a continous technical development. A modern process of fabrication and raw materials of quality insure a reliable and robust machine. With a speed rotation of 1500 and 3000 per minute, soft, hard, stringy, viscous or dry materials are intensively worked and changed into an homogeneous product.
Times of process faster, the several using and the easy handling of Stephan machine rationalize work processes and bring to a better profitability.

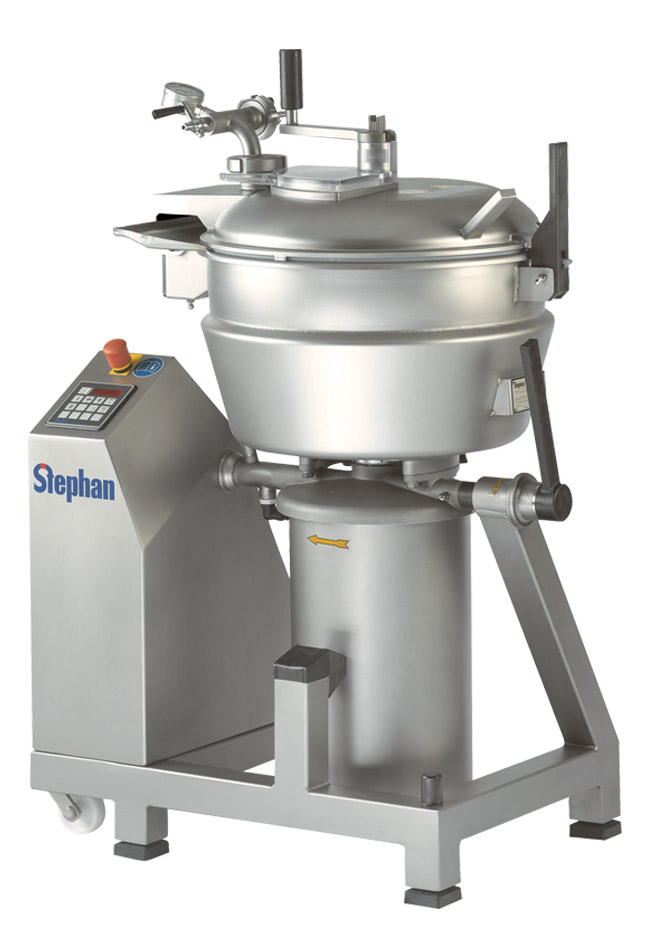

Description of the machine
- Bowl size : 44 liters
- Capacity : From 8 to 30 liters max.

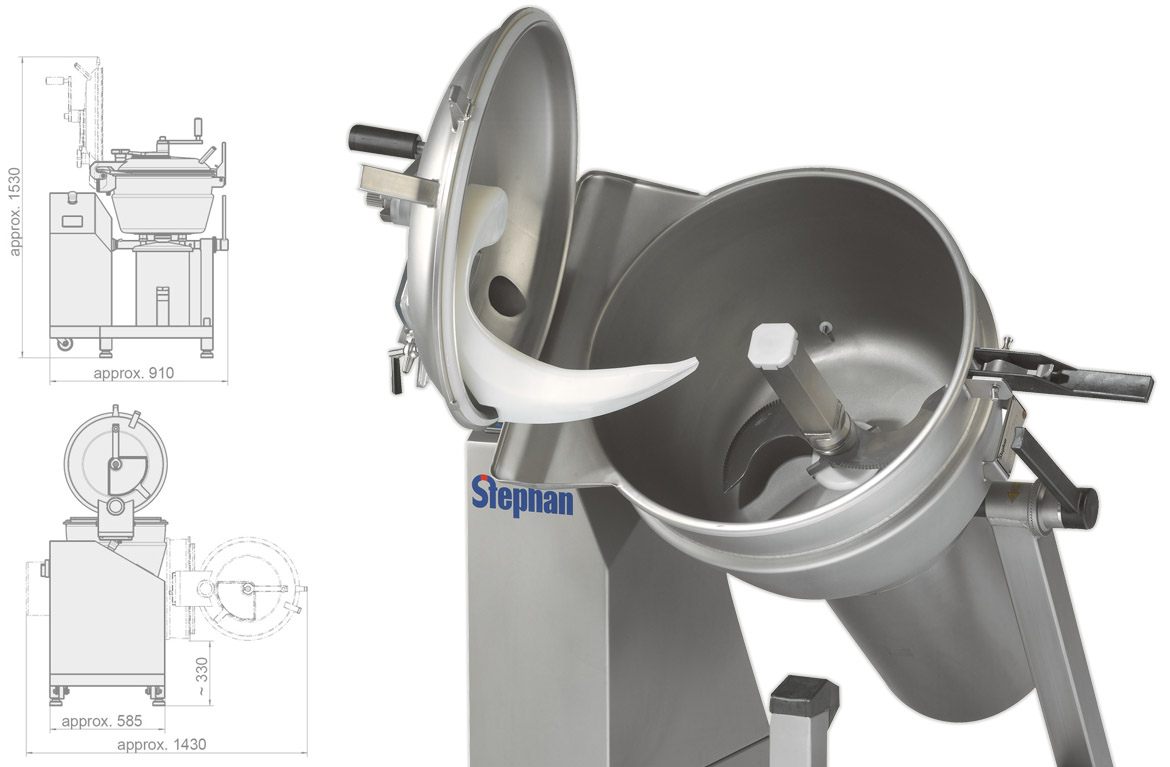

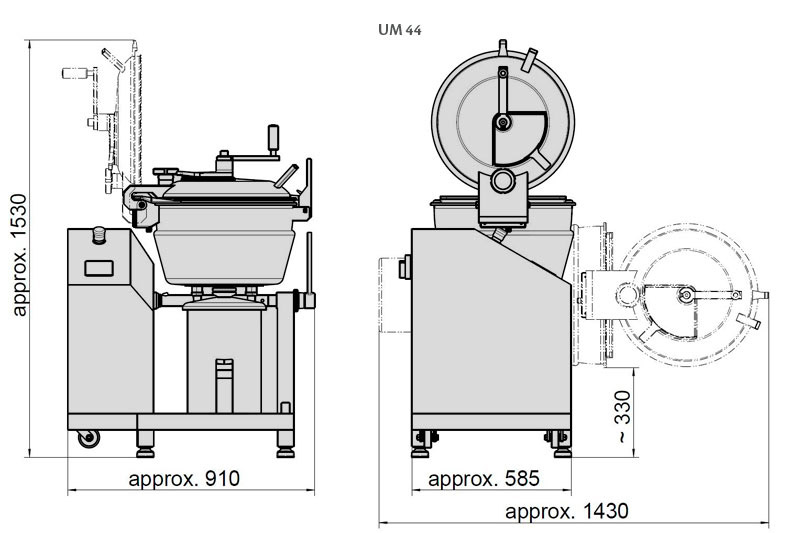

- Dimensions : Length 1120 x width 1395 x Height 1500 mm
- Weight : 120 kg
- Working temperature : 95°C maximum
- Working pressure : 0 bar
- Parts in contact with the product : Stainless steel V2A
- Machine chassis : Stainless steel V2A Drive :
- With motor hood directly flanged at the bowl with direct drive of knife shaft
- Speed : From 1500 / 3000 ou 750 / 1500 / 3000 t/min
- Power : 4.5 / 5.5, 5.5 / 7.5 (renforced) ou 2.2 / 4.0 / 5.5 kW
- Operation voltage : 400 V , 50 Hz
- Control voltage : 24 V
- Power requirement : From 6 à 8,5 kW / 20 A curve D
- Brake : Disc brake for main motor
- Emergency button

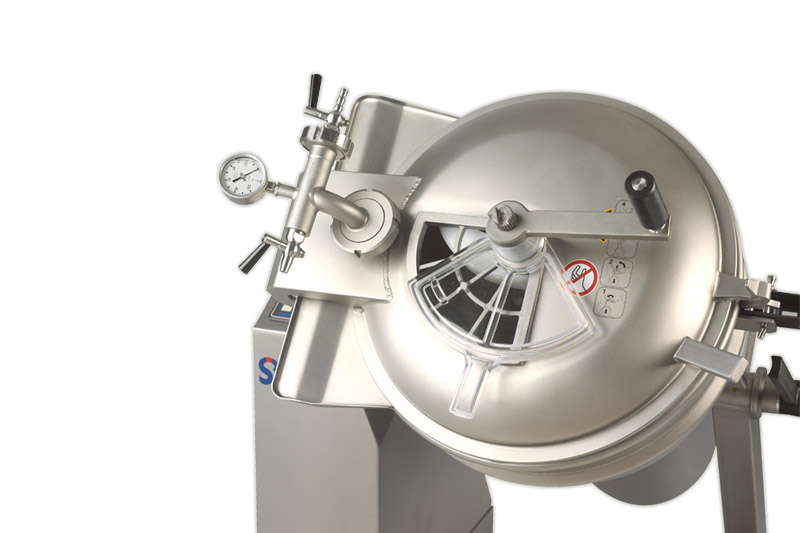

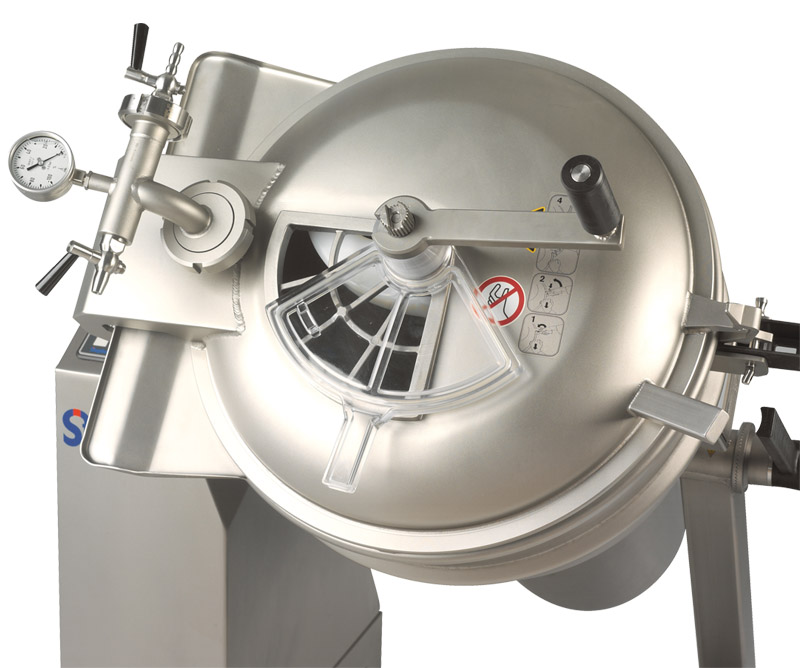

- Stainless steel cover
- Wide knives or wave-cut knives
- Polyamid mixing arm for a manual using
- Stainless steel knife shaft plugged and fixed at knife shaft with 2 knives

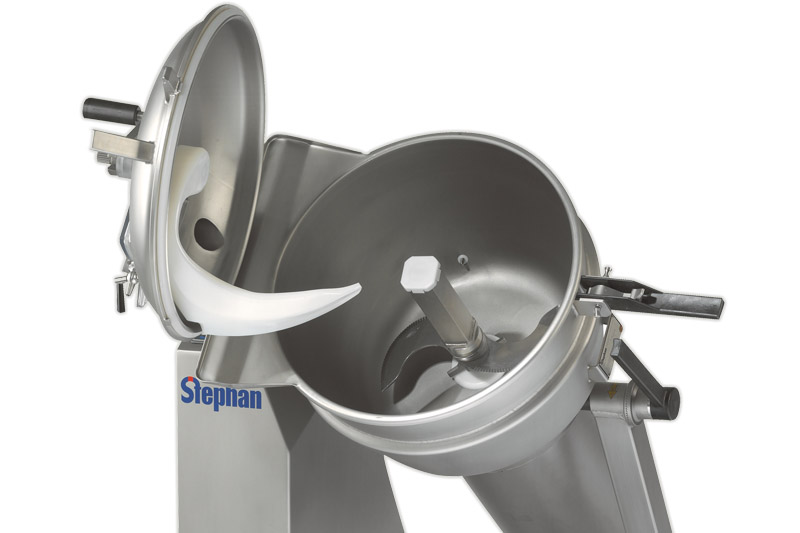

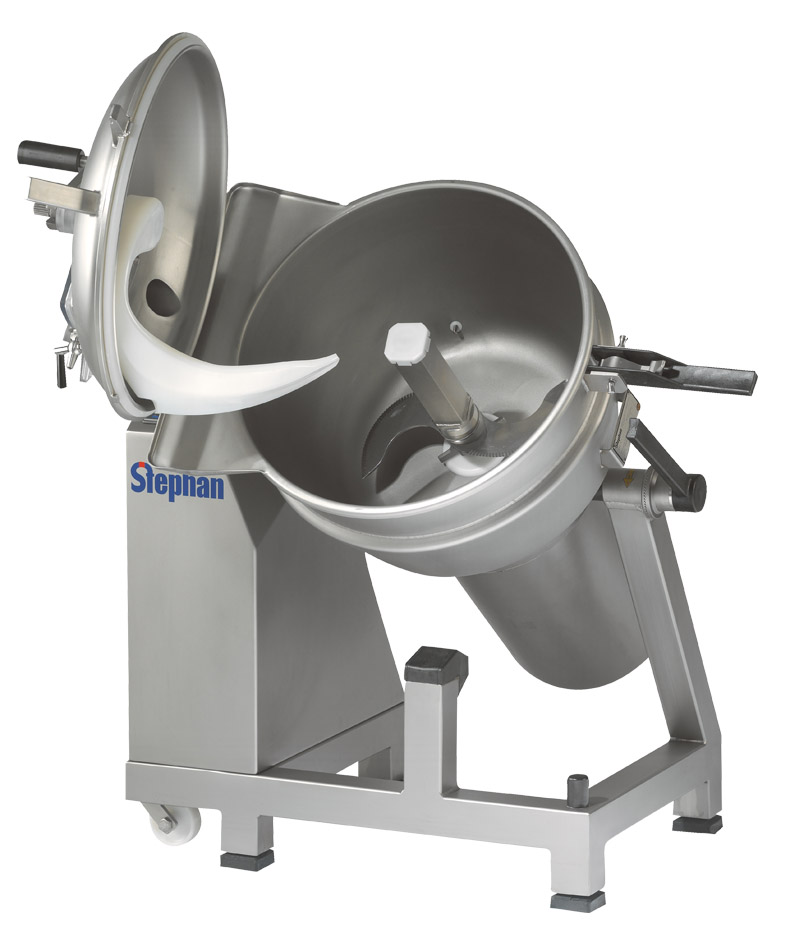

- Stainless steel bowl on the main drive. Manually removable for the emptying of the product Electrical equipment :

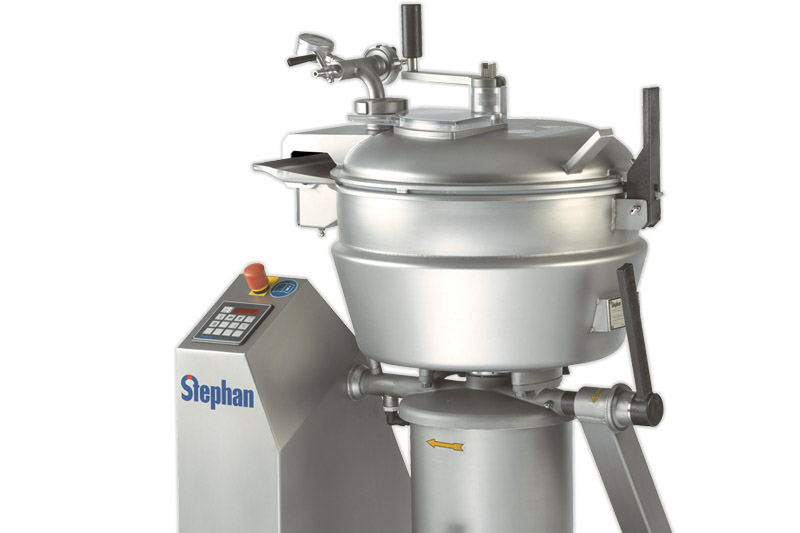

- Soft touch keybord 3010 with speed 1 or 2 for main motor or soft touch keybord 3011 for main motor, temperature display and for working process time by switch...
- Double jacket
- Vacuum pump
- Temperature feeler
- Frequency control
- Reinforced motor.
- Inside chocolates
- Solid mixing
- Almond paste
- Suspension
- Chocolate
- Emulsions
- Ganache
- Topping
- Praline
- Creams
- Paste...
