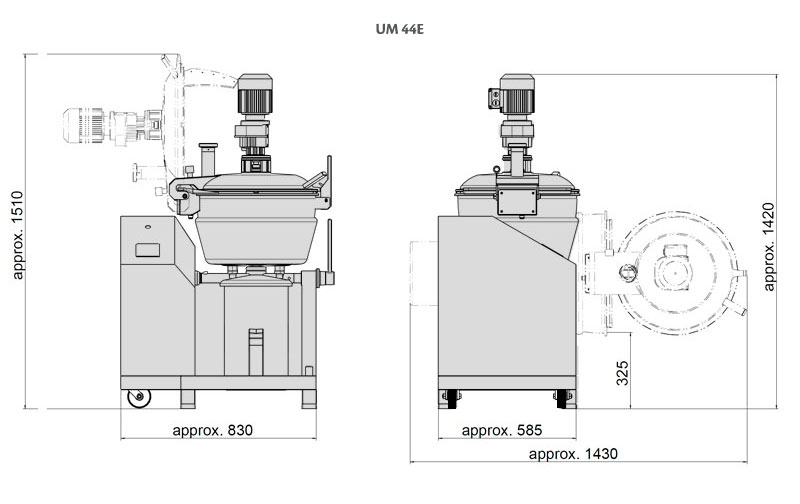

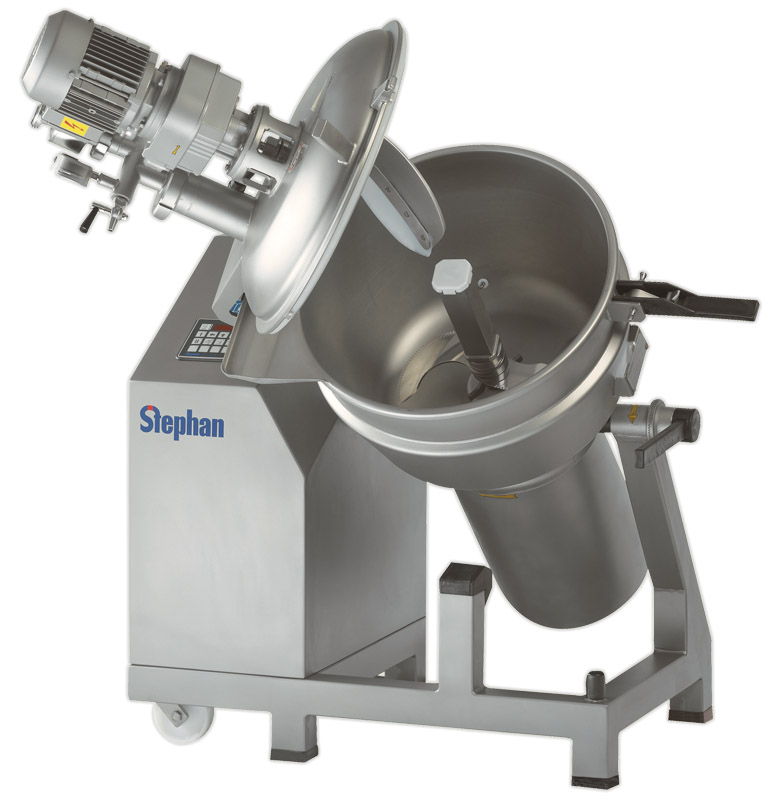

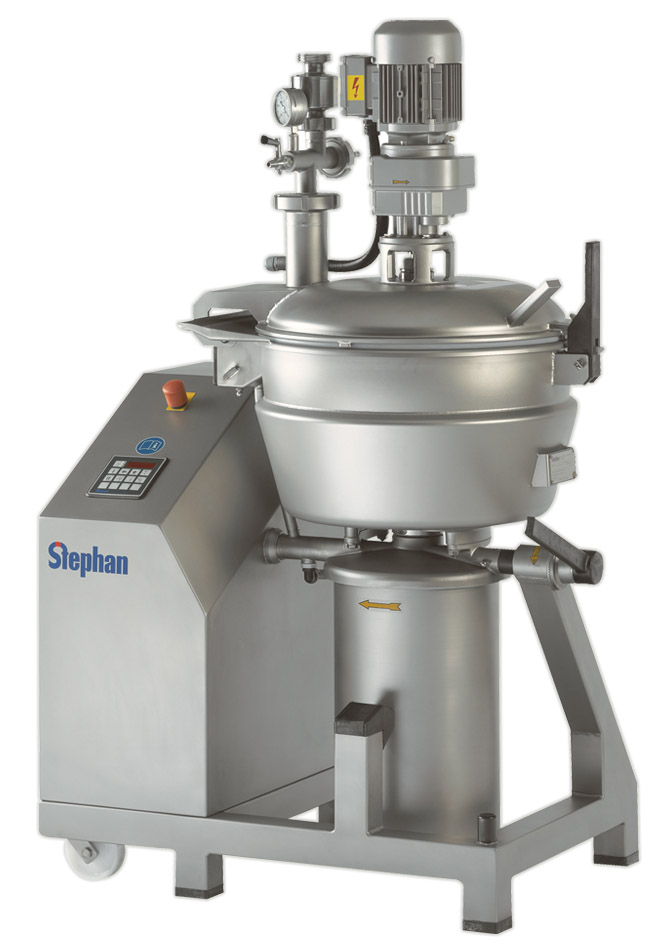

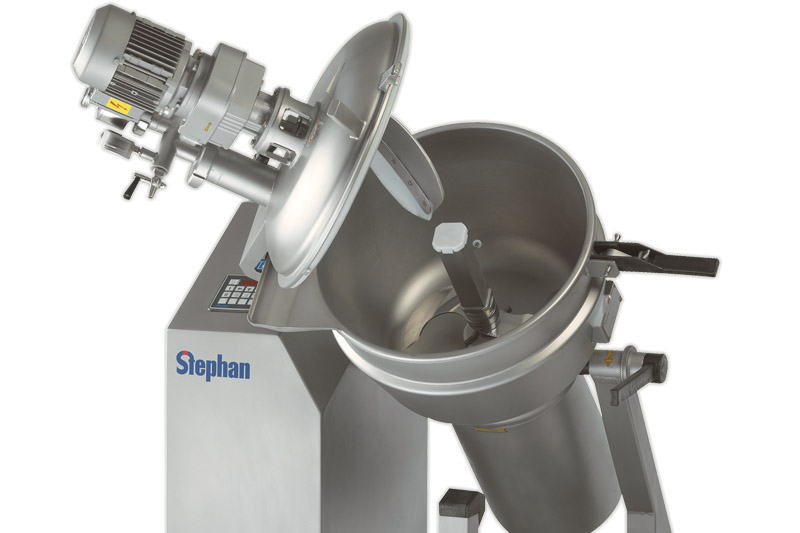

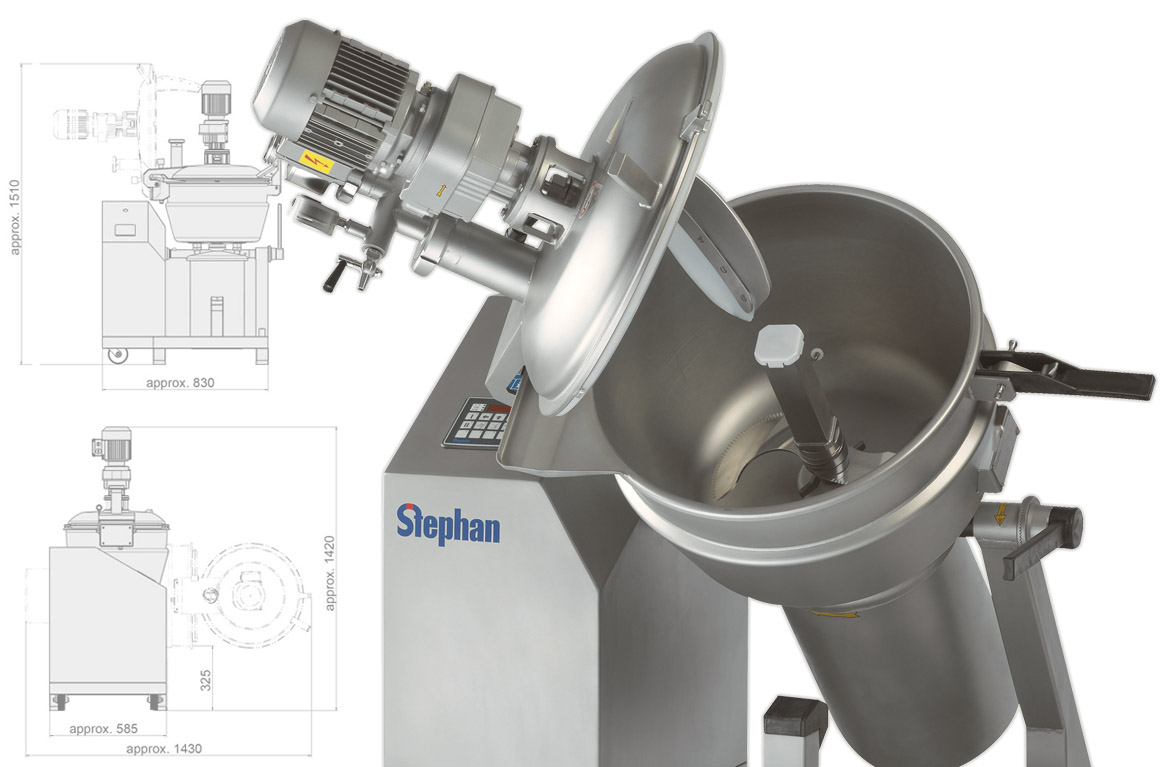

UM44E

Universal machines type UM44 are useful for cutting, mixing, kneading, emulsifying ; only one Stephan machine for several processes. It means one investiment, an optimal using of the machine and a flexible planning of production. Thanks to its different executions and full additionnal equipments, the Stephan machine is perfectly fitting to the needs of all branches.

The Stephan Universal Machines are easy handling. They are the result of a long experience and a continous technical development. A modern process of fabrication and raw materials of quality insure a reliable and robust machine. With a speed rotation of 1500 and 3000 per minute, soft, hard, stringy, viscous or dry materials are intensively worked and changed into an homogeneous product.

Times of process faster, the several using and the easy handling of Stephan machine rationalize work processes and bring to a better profitability.

Description of the machine

  • Emergency button...
  • Stainless steel cover
  • Motor drive with flange linked to the cover
  • Polyamid mixing arm or in stainless steel with scraper
  • Stainless steel knife shaft plugged and fixed at knife shaft with 2 knives
  • Stainless steel bowl on the main drive. Manually removable for the emptying of the product
  • Electrical equipment :
  • For main motor mounted in separate control box - Soft touch keybord 3011 for main motor, temperature display and for working process time by switch.
  • Double jacket
  • Vacuum pump
  • Temperature feeler
  • Frequency control
  • Reinforced motor.
  • Inside chocolates
  • Solid mixing
  • Almond paste
  • Suspension
  • Chocolate
  • Emulsions
  • Ganache
  • Topping
  • Praline
  • Creams
  • Paste...
