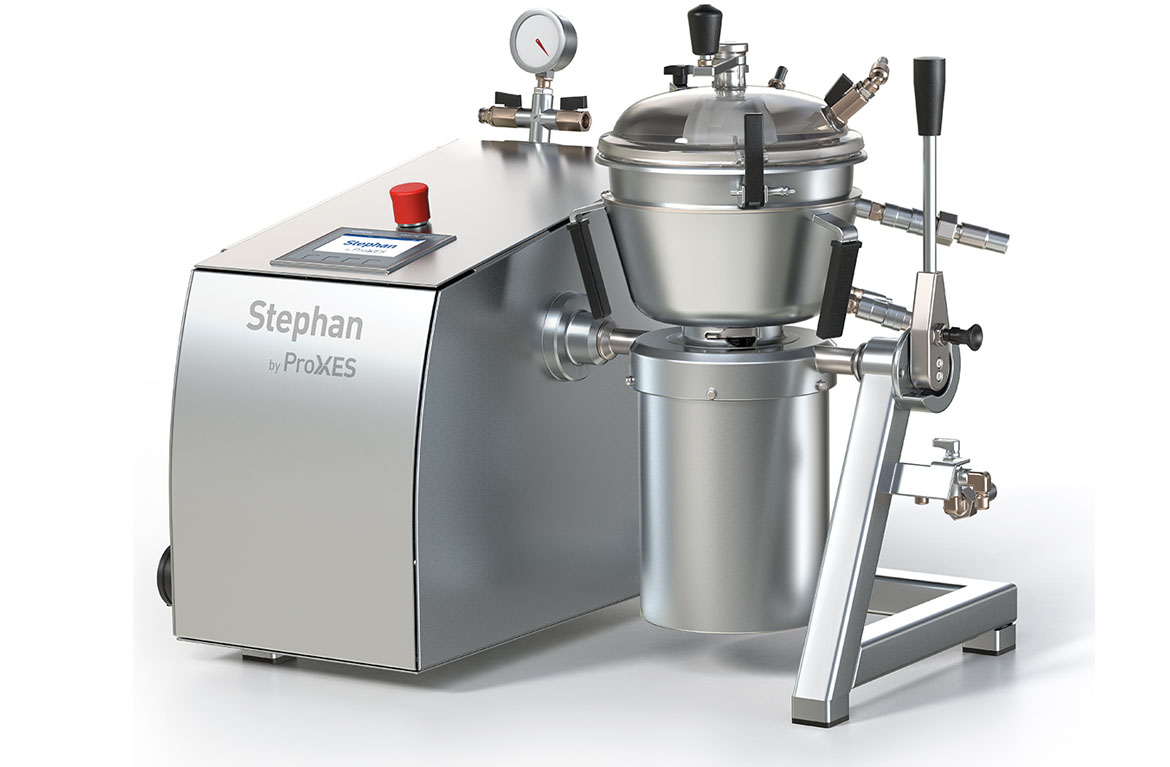

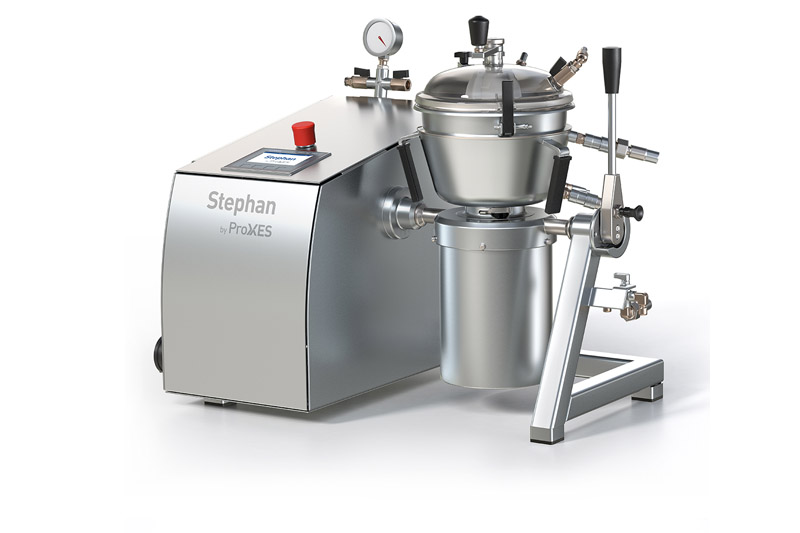

The Stephan® Universal Machine UMX 5 is used everywhere where a single machine is needed to perform a large number of operations quickly and consistently, such as grinding, mixing, refining, kneading, emulsifying, heating, and indirectly cooling with vacuum operation up to 100 mbar and constant temperature control.
It is an ergonomically designed machine, well-equipped as standard, with easy and quick cleaning, ideal for research and development in all sectors…
Description of the machine
- Bowl size : 5 liters
- Capacity : From 0,5 to 3 liters max
- Dimensions : Lenght 800 x Widht 450 x Height 720 mm
- Weight : 70 kg
- Working temperature : 95°C maximum
- Working pressure : 0 bar
- Parts in contact with the product : Stainless steel V2A, polyamid
- Drive : Continously Variable speed
- Speed : From 300 to 3000 t/min
- Power : 0,75 kW
- Operating voltage : 220 V , 50 Hz
- Control voltage : 24 V
- Power requirement : 3 kW / 20 A curve D
- Supplementary ventilator : Integrated in the chassis for working at low speed
- Touch panel
- Emergency button
- Stainless steel bowl V2A
- With double jacket - hot/cold water
- Vacuum unit with manometer and stop valve
- Sampling cock mounted at the cover for sampling liquids
- Safety unit vent connection with flap mounted at the cover
- Stainless steel and polyamid knife shaft with two knives
- Polyamid mixing arm
- Stainless steel base Electrical equipment :
- Soft touch keybord 3011 for main motor, temperature display and for working process time by switch, digital with temperature feeler type PT 100 2L mounted in the movable bowl
- Heating device, vacuum pump,.. Wide range of tools :
- Wave-cut knives
- Mixing insert
- Knead insert
- Wide knives
- Insert for small quantities...
- Inside chocolates
- Solid mixing
- Almond paste
- Suspension
- Chocolate
- Emulsions
- Ganache
- Topping
- Praline
- Creams
- Paste...
